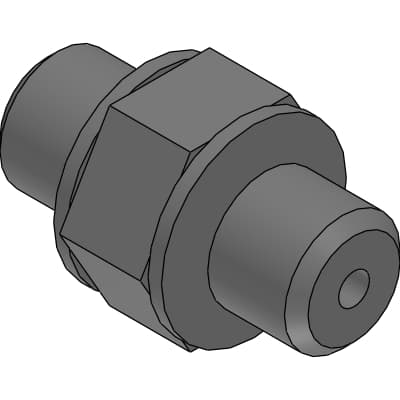

Product Model
FNS-M3
Selling Points
- 1Ultra-compact design for tight spaces
- 2Compatible with piping sizes M3, M5, and tube diameters Ø3.2, Ø4, Ø6
- 3Made from durable brass material with electroless nickel plating
- 4Easy screw-to-screw connection for quick assembly
- 5Ideal for miniaturized devices and precision applications
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | FNS-M3 | B | 4.5mm |
E | M3x0.5 | Min. bore size | 0.8mm |
K | 2.8mm | L | 2.6mm |
Eff.X-sectional area | 0.4mm^2 | Weight | 0.6g |
Specifications may be subject to change without notice
