Product Model

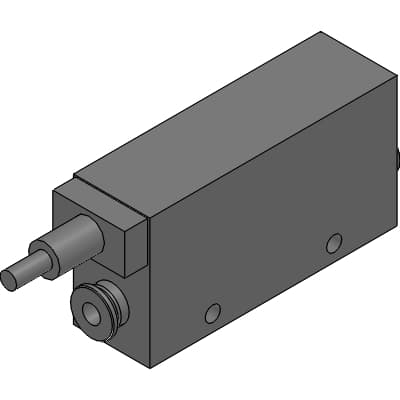

FSM3-B005U1BH1J1N-C
Selling Points
- 1High Accuracy: ±3% F.S. accuracy ensures precise gas flow measurement.
- 2Versatile Gas Handling: Supports air, nitrogen, argon, carbon dioxide, and mixed gases.
- 3Robust Design: Operating ambient temperature range of 0 to 50°C and humidity up to 90% RH.
- 4Flexible Port Options: Available in various port sizes including φ4 mm, φ6 mm, φ1/4", Rc1/8, G1/8, NPT1/8.
- 5Advanced Features: Includes gas change function, analog output (1 to 5 V or 4 to 20 mA), and protection against power supply reverse connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | FSM3 | Display | B : Bar display |
Flow rate range (full scale flow rate) | 005 : 500mL/min | Flow direction | U : Uni-direction |
Body material/compatible fluids | 1 : Resin, Air | Port size | BH : Push-in (for φ4 mm tube) |
Piping direction | 1 : Straight | Piping direction 2 | - |
Output specifications | J : Analog voltage output x 1-point | Unit specifications | 1 : SI units only |
Valve option | N : None | Lead wire | C : 4 conductor 1 m |
Mounting attachments | Blank : None | Included documents | Blank : None |
Clean-room specifications | Blank : None |
Specifications may be subject to change without notice
