CKD CorporationFlow rate sensors/controllers
Product Model

FSM3-L005U2AA1A1N-A

Manufacturer

CKD Corporation

Category

Flow rate sensors/controllers

Product ID

52201

In Stock
Last updated: 2025/4/17
View Specifications

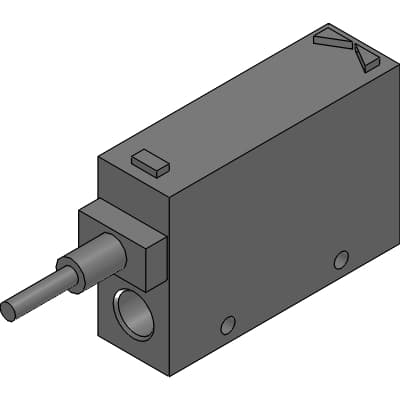

CKD Corporation FSM3-L005U2AA1A1N-A

Selling Points

  • 1High Accuracy: Measures flow rates with ±3% F.S. accuracy in dry air and ±1% F.S. repeatability.
  • 2Versatile Compatibility: Compatible with five types of gases: air, nitrogen, argon, carbon dioxide, and mixed gases.
  • 3Compact Design: Resin body with LCD display for easy operation and monitoring.
  • 4Wide Flow Rate Range: Measures flow rates from 500 mL/min to 1000 L/min.
  • 5Environmental Resistance: IP65 protection structure for safe use in dusty environments, with optional ATEX compliance for explosion-proof applications.
Product Details
FSM3-L005U2AA1A1N-A
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
FSM3
Display
L : Liquid crystal display
Flow rate range (full scale flow rate)
005 : 500mL/min
Flow direction
U : Uni-direction
Body material/compatible fluids
2 : SUS, Air (gas switchable)
Port size
AA : Rc1/8
Piping direction
1 : Straight
Output specifications
A : Analog output 1 point(Voltage) 1 to 5V, Switch output 1 point(NPN), With setting copy function
Unit specifications
1 : SI units only
Valve option
N : None
Lead wire
A : 5 conductor 1 m
Mounting attachments
Blank : None
Included documents
Blank : None
Clean-room specifications
Blank : None
Option (ATEX Compliant)
Blank : None

Specifications may be subject to change without notice
