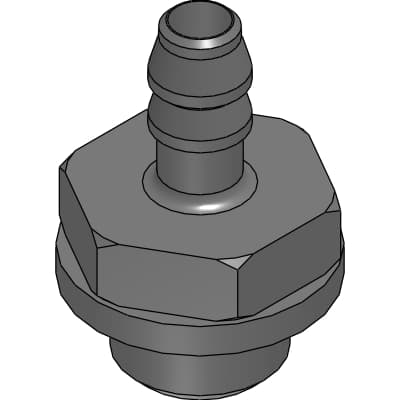

Product Model
FTS4-M5
Selling Points
- 1Ultra-small joint fitting for M3, M5 piping sizes and Ø3.2, Ø4, Ø6 tube diameters.
- 2Made from durable brass material with electroless nickel plating for corrosion resistance.
- 3Compact design with a standard clean spec for use in clean environments.
- 4Lightweight and adjustable spring for easy tool balancing.
- 5Available in packages of 1-10 pieces for flexible ordering options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model | FTS4-M5 | Compatible tube OD | φ3.2,φ4 |
B | 7.0mm | E | M5x0.8mm |
Min. bore size | 1.8 | H | 2.9mm |
J | 5.5mm | K | 8.6mm |
L | 2.9mm | I | 0.4 |
Specifications may be subject to change without notice
