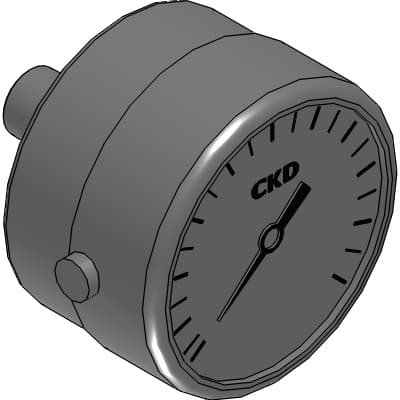

Product Model
G59D-6-P02
Selling Points
- 1High accuracy with ±3% full-scale accuracy.
- 2Versatile pressure range: 0 to 0.2, 0 to 0.4, 0 to 1.0, and 0 to 2.0 MPa.
- 3Compact design with a 52mm dial size.
- 4Suitable for measuring liquid and air pressure in piping systems.
- 5Made with durable copper plate and chrome plating for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | G59D | Port size | 6 : R 1/8 |
Pressure display | P02 : 0 to 0.2Mpa | A | φ52mm |
B | 44.5mm | C | 28.0mm |
Port size | R 1/8mm | E | 14mm |
VER | 2 | Infotext | https://www.ckd.co.jp/kiki/en/product/detail/405/G49D%E3%83%BBG59D?t=list&cid=72&sid=0 |
Specifications may be subject to change without notice
