Product Model

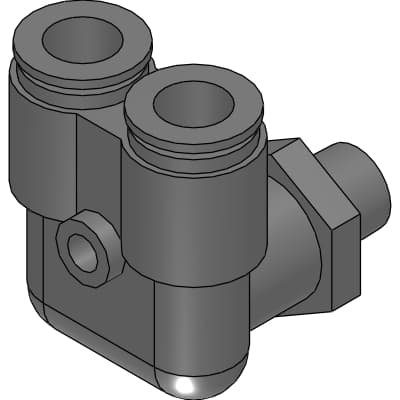

GWFY10-8
Selling Points
- 1Compact size for space-saving installation.
- 2Flame-resistant white body for safe working environments.
- 3Smooth insertion and secure sealing with V-shaped packing seal.
- 4Freely rotating elbow union for easy piping and removal.
- 5Electroless nickeling on copper alloy sections for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWFY10-8 | Applicable tube O.D.∅ | 10mm |
M | R1/4 | H | 19mm |
L1 | 37.5mm | L2 | 33.0mm |
A | 11.0mm | B | 21.5mm |
C | 17.5mm | D | 36mm |
E | 4.2mm | F | 18.5mm |
G | 31.5mm | N | 20.0mm |
P | 18.5mm | Min. bore size | 8.0mm |
Effective sectional area | 34.4mm^2 |
Specifications may be subject to change without notice
