CKD CorporationFittings/tubes
Product Model

GWJL6-M5

Manufacturer

CKD Corporation

Category

Fittings/tubes

Product ID

51213

In Stock
Last updated: 2025/4/18
View Specifications

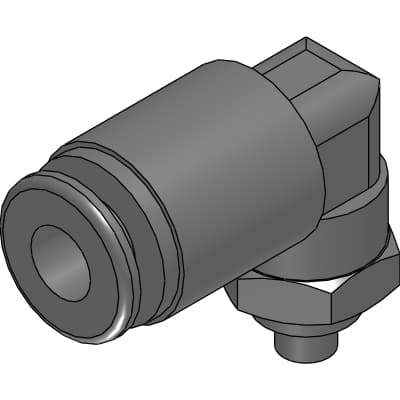

CKD Corporation GWJL6-M5

Selling Points

  • 1Compact and Versatile Design: The GWJL6-M5 offers a 90° elbow configuration for efficient piping arrangements.
  • 2High-Quality Materials: Constructed with PBT resin for durability and resistance to chemicals and high temperatures.
  • 3Easy Installation: Push-to-connect design simplifies tube connection and disconnection processes.
  • 4Metric Compatibility: Compatible with metric tubes and male BSPT/metric threads for seamless integration.
  • 5Quick Shipping Options: Available in packages of 1-10 pieces with fast shipping options to meet your needs.
Product Details
GWJL6-M5
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model No.
GWJL6-M5
Compatible tube O.D. φ
6.0mm
Thread
M5x0.8
Hex
10mm
L1
15.5mm
L2
18.5mm
A
3.4mm
B
14.5mm
C
11.8mm
Min. bore size
2.5mm
Eff. X-sectional area
3.5mm^2
Weight
7.0g

Specifications may be subject to change without notice
