Product Model

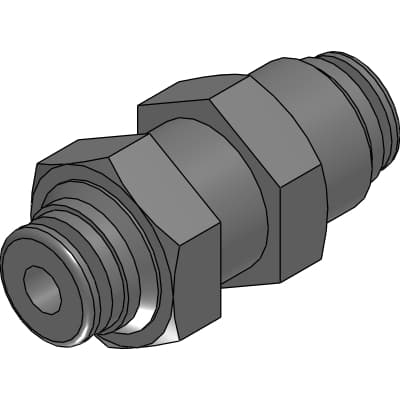

GWJS3-0-X
Selling Points
- 1Compact design for space-saving applications.
- 2Flame-resistant resin for enhanced safety.
- 3V-shaped packing seal for smooth and accurate insertion.
- 4Easy push-in installation with standard sealant applied.
- 5Durable and flexible due to high mechanical strength.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | GWJS3-0-X | Compatible tube O.D. φ | 3.2mm |
L | 26.5mm | B | 12.5mm |
Hex | 12mm | Min. bore size | 2.5mm |
Thread | M10x1.0 | Panel thickness | 5mm |
Panel bore size | 10.5mm | Eff. X-sectional area | 2.5mm^2 |
Weight | 9.8g |
Specifications may be subject to change without notice
