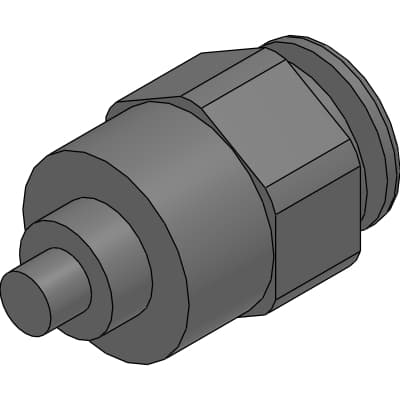

Product Model
GWJS4-6
Selling Points
- 1Compact design with reduced pipe dead space.
- 2Suitable for air systems with screw mount direction.
- 3Flame-resistant resin for safety in various environments.
- 4Easy to install with one-touch coupling mechanism.
- 5Compatible with tubes of Φ3.2, Φ4, and Φ6 diameters.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | GWJS4-6 | Compatible tube O.D. φ | 4.0mm |
Thread | R1/8 | Hex | 10mm |
K | 11.0mm | L | 20.0mm |
A | 8.0mm | B | 13.5mm |
Min. bore size | 2.5mm | Eff. X-sectional area | 4.0mm^2 |
Weight | 7.1g |
Specifications may be subject to change without notice
