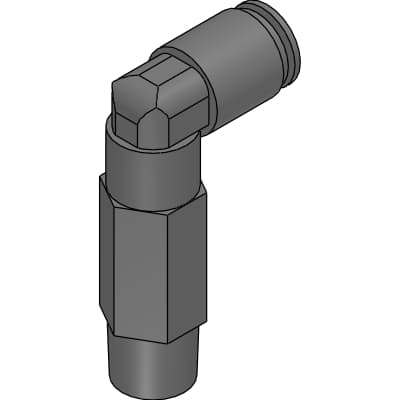

Product Model
GWL10-10-L
Selling Points
- 1Compact size for space-saving applications.
- 2Flame-retardant PBT resin for safety.
- 3Smooth insertion and accurate sealing with V-shaped packing seal.
- 4Compatible with metric tubes and male BSPT/metric threads.
- 5Easy to install with no need for tools or cleaning.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWL10-10-L | Applicable tube O.D.∅ | 10mm |
M | R3/8 | H | 17mm |
L1 | 57.5mm | L2 | 27.0mm |
A | 12mm | B | 21.5mm |
C | 17.5mm | Min. bore size | 8.0mm |
Effective sectional area | 27.0mm^2 |
Specifications may be subject to change without notice
