CKD CorporationFittings/tubes
Product Model

GWL12-8-45

Manufacturer

CKD Corporation

Category

Fittings/tubes

Product ID

50972

In Stock
Last updated: 2025/4/17
View Specifications

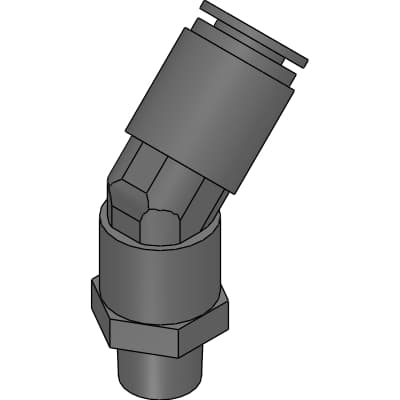

CKD Corporation GWL12-8-45

Selling Points

  • 1Compact and space-saving design for efficient piping systems.
  • 2Flame-resistant PBT resin (UL94 V-0 standard) for safe operation.
  • 3Easy tube removal with V-shaped packing seal for smooth insertion.
  • 4Electroless nickel coating on brass parts for improved corrosion resistance.
  • 5Freely rotating elbow union for flexible piping and removal directions.
Product Details
GWL12-8-45
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
GWL12-8-45
Applicable tube O.D.∅
12mm
M
R1/4
H
19mm
L1
30.5mm
L2
27.0mm
A
11.0mm
B
23.0mm
C
20.0mm
Min. bore size
8.5mm
Effective sectional area
35.5mm^2

Specifications may be subject to change without notice
