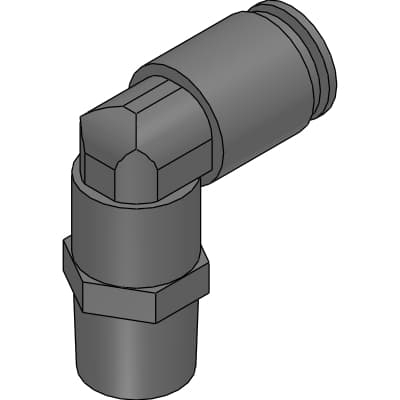

Product Model
GWL16-10
Selling Points
- No selling points available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWL16-10 | Applicable tube O.D.∅ | 16mm |
M | R3/8 | H | 22mm |
L1 | 41.0mm | L2 | 35.5mm |
A | 12.0mm | B | 28.0mm |
C | 26.5mm | Min. bore size | 12.0mm |
Effective sectional area | 80.0mm^2 |
Specifications may be subject to change without notice
