CKD CorporationFittings/tubes
Product Model

GWMF812-0-W

Manufacturer

CKD Corporation

Category

Fittings/tubes

Product ID

50901

In Stock
Last updated: 2025/4/21
View Specifications

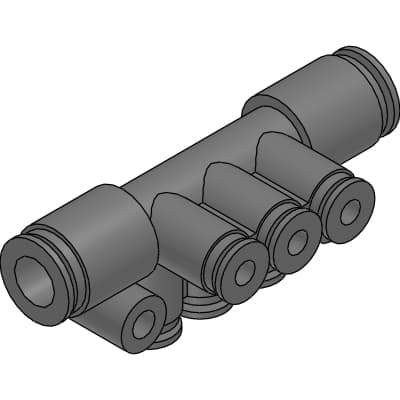

CKD Corporation GWMF812-0-W

Selling Points

  • 1Compact size for space-saving applications.
  • 2Flame-resistant white body for safe use in various environments.
  • 3Twin run T, triple, male BSPT to metric tube configuration.
  • 4Made from PBT resin for durability and resistance.
  • 5Quick and easy push-in fitting design for efficient installation.
Product Details
GWMF812-0-W
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
GWMF812-0-W
Applicable tube O.D.∅ A side
8mm
Applicable tube O.D.∅ B side
12mm
L1
87.0mm
L2
24.5mm
L3
36.0mm
B1
19.0mm
B2
23.0mm
F1
11.5mm
F2
22.0mm
N1
13.0mm
N2
51mm
P
15.0mm
Effective sectional area
36.0mm^2

Specifications may be subject to change without notice
