Product Model

GWP1010-C

In Stock
Last updated: 2025/4/21

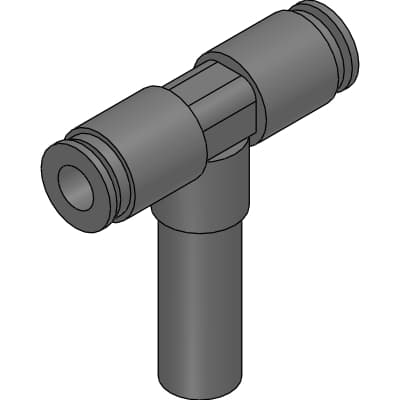

CKD Corporation GWP1010-C

Selling Points

  • 1The GWP1010-L Series features a flame retardant resin (UL94 V-0 Equivalent) for enhanced safety in clean environments.
  • 2Equipped with a standard NBR seal for reliable performance and durability.
  • 3Designed for use with air, making it suitable for pneumatic systems.
  • 4Compatible with 10mm tube and joint diameters, ensuring precise connections.
  • 5Ideal for applications requiring cleanliness, such as in medical or food processing environments.
Product Details
GWP1010-C
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
GWP1010-C
Applicable tube O.D.∅
10mm
Joint port size ∅
10mm
L1
41.5mm
L2
27.0mm
A
20.0mm
B
21.5mm
C
17.5mm
Min. bore size
6.8mm
Effective sectional area
28.6mm^2

Specifications may be subject to change without notice
