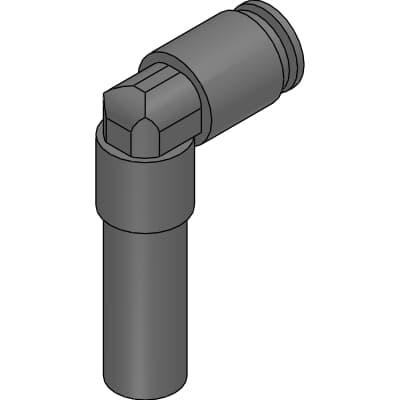

Product Model
GWP1212-L
Selling Points
- 1Compact size for space-saving applications.
- 2V-shaped seal ensures smooth insertion and secure sealing.
- 3Flame retardant materials for safe operation in various environments.
- 4Easy to install with one-touch coupling mechanism.
- 5Suitable for pneumatic piping in food manufacturing processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWP1212-L | Applicable tube O.D.∅ | 12mm |
Joint port size ∅ | 12mm | L1 | 44.5mm |
L2 | 29.5mm | A | 21.5mm |
B | 23.0mm | C | 20.0mm |
Min. bore size | 8.8mm | Effective sectional area | 34.0mm^2 |
Specifications may be subject to change without notice
