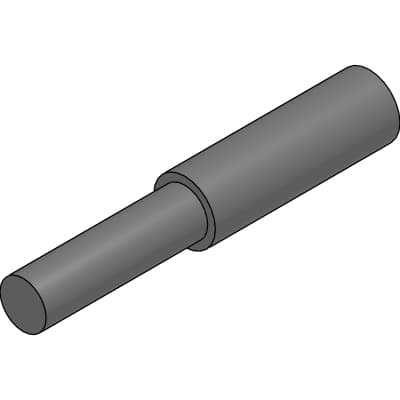

Product Model
GWP810-0
Selling Points
- 1Metric Compatibility: Compatible with metric stem and tube sizes.
- 2Flame Retardant Material: Made from flame retardant nylon for safety.
- 3Versatile Configuration: Available in straight and reducer configurations.
- 4Easy Installation: Push-to-connect design for quick and easy installation.
- 5High-Quality CAD Options: Available in 2D and 3D CAD formats for precise design integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWP810-0 | Joint port size ∅ A side | 8mm |
Joint port size ∅ B side | 10mm | L | 50.5mm |
L1 | 10.0mm | B1 | 19.0mm |
B2 | 21.5mm | Min. hole diameter | 6.0mm |
Effective sectional area | 22.4mm^2 |
Specifications may be subject to change without notice
