CKD CorporationFittings/tubes
Product Model

GWS10-10-M

Manufacturer

CKD Corporation

Category

Fittings/tubes

Product ID

50906

In Stock
Last updated: 2025/4/21
View Specifications

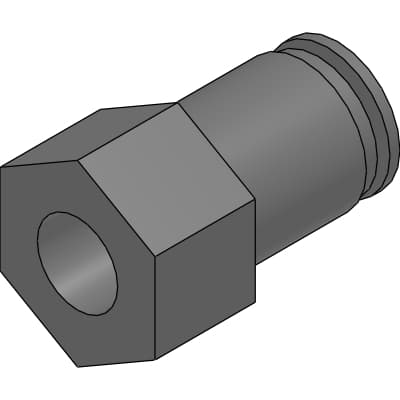

CKD Corporation GWS10-10-M

Selling Points

  • 1High-Temperature Resistance: Operates between -10°C to 60°C.
  • 2Electroless Nickel Plating: Provides corrosion resistance and durability.
  • 3Standard NBR Gasket: Ensures reliable sealing in various fluid applications.
  • 4Hammered Nipple Design: Enhances fluid flow and reduces pressure drop.
  • 5Compact and Lightweight: Easy to handle and install in tight spaces.
Product Details
GWS10-10-M
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
GWS10-10-M
Applicable tube O.D.∅
10mm
M
Rc3/8
H
19mm
L
35.5mm
L1
15mm
A
12mm
B
21.5mm
Min. bore size
8.0mm
Effective sectional area
30.5mm^2

Specifications may be subject to change without notice
