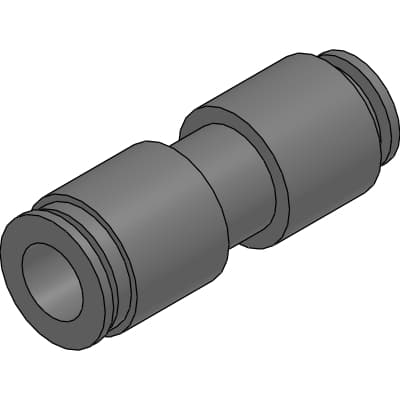

Product Model
GWS1012-0
Selling Points
- 1Compact size for space-saving applications.
- 2Flame-resistant PBT resin for safe use in various environments.
- 3Smooth insertion and accurate sealing with V-shaped packing seal.
- 4Compatible with metric tubes of ø10 to ø12.
- 5Easy tubing removal with push ring design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWS1012-0 | Applicable tube O.D.∅ A side | 12mm |
Applicable tube O.D.∅ B side | 10mm | L | 47.5mm |
B1 | 23.0mm | B2 | 21.5mm |
C | 20.0mm | Min. hole diameter | 8.0mm |
Effective sectional area | 30mm^2 |
Specifications may be subject to change without notice
