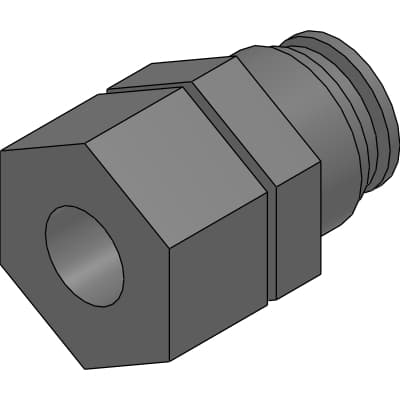

Product Model
GWS12-15-E
Selling Points
- 1Brass Construction: Durable and resistant to corrosion.
- 2Flame Retardant: Ensures safety in high-temperature applications.
- 3Easy Push-to-Connect: Simple and quick installation process.
- 4Metric Tube Compatibility: Designed for seamless integration with metric tubes.
- 5Compact Design: Space-saving solution for pneumatic piping systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWS12-15-E | Applicable tube O.D.∅ | 12mm |
M | Rc1/2INCH | H1 | 24mm |
H2 | 26mm | L | 40.5mm |
L1 | 18mm | A | 15mm |
B | 23.0mm | E | 1mm |
MxP | M22 x 1 | Installation hole diameter | 23mm |
Min. hole diameter | 9.0mm | Effective sectional area | 35.5mm^2 |
Specifications may be subject to change without notice
