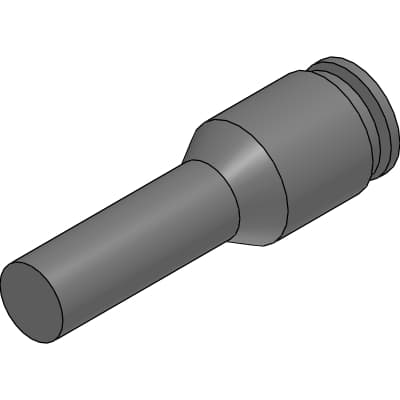

Product Model
GWS8-12P
Selling Points
- 1Flame Retardant Resin: Made with UL94 V-0 equivalent flame retardant resin for enhanced safety.
- 2Metric Compatibility: Compatible with metric stem to metric tube configurations.
- 3Compact Design: Compact size for space-saving applications.
- 4Easy Installation: Push-in installation with V-shaped packing seal for smooth insertion and accurate sealing.
- 5Durable Materials: Electroless nickel plating on brass parts for durability and resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWS8-12P | Applicable tube O.D.∅ | 8mm |
Connecting joint diameter ∅ | 12mm | L | 44.0mm |
L1 | 21.0mm | B | 19.0mm |
C | 14.5mm | Min. hole diameter | 6.0mm |
Effective sectional area | 22.0mm^2 |
Specifications may be subject to change without notice
