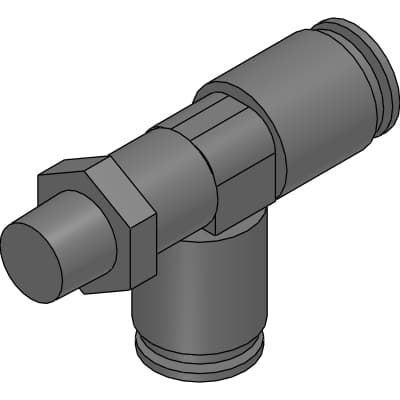

Product Model
GWT12-10-D
Selling Points
- 1Compact size for space-saving applications.
- 2Flame-resistant body and push ring for safety.
- 3V-shaped packing seal for smooth insertion and accurate sealing.
- 4Freely rotating elbow union for easy piping and removal.
- 5Electroless nickel plating on copper alloy sections for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWT12-10-D | Applicable tube O.D.∅ | 12mm |
M | R3/8 | H | 19mm |
L1 | 34.5mm | L2 | 29.5mm |
A | 12.0mm | B | 23.0mm |
C | 20.0mm | Min. bore size | 9.0mm |
Effective sectional area | 41.0mm^2 |
Specifications may be subject to change without notice
