CKD CorporationFittings/tubes
Product Model

GWTR12-10

Manufacturer

CKD Corporation

Category

Fittings/tubes

Product ID

50900

In Stock
Last updated: 2025/4/21
View Specifications

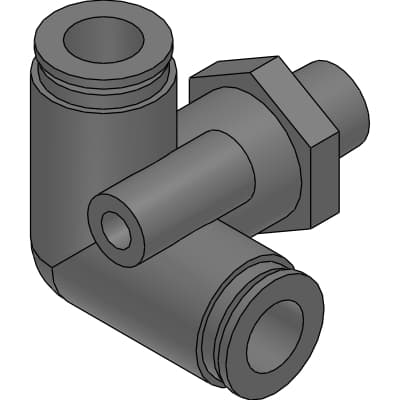

CKD Corporation GWTR12-10

Selling Points

  • 1The GWTR12-10 features a main body made from flame retardant resin (UL94 V-0 Equivalent) for enhanced safety.
  • 2The brass part is electroless nickel plated for durability and resistance to corrosion.
  • 3Designed for use with air, making it suitable for pneumatic systems and applications.
  • 4The tetra-type (with R) screw mounting ensures a compact and efficient design.
  • 5Operates between -10°C to 60°C, providing flexibility in various environmental conditions.
Product Details
GWTR12-10
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
GWTR12-10
Applicable tube O.D.∅
12mm
M
R3/8
H
22mm
L1
43.0mm
L2
30.0mm
A
12.0mm
B
23.0mm
C
20.0mm
E
4.2mm
F
21.0mm
N
14.0mm
Min. bore size
8.5mm
Effective sectional area
37.5mm^2

Specifications may be subject to change without notice
