Product Model

GWWY4-8

In Stock
Last updated: 2025/4/18

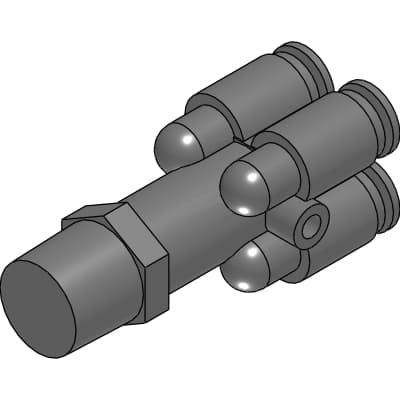

CKD Corporation GWWY4-8

Selling Points

  • 1Made with flame-resistant resin (UL94 V-0 equivalent) for safe operation in various environments.
  • 2Push-to-connect design allows for quick and secure tube connections without the need for tools.
  • 3Designed for space-saving applications, perfect for tight spaces and complex piping systems.
  • 4Constructed with PBT resin for enhanced durability and resistance to corrosion.
  • 5Suitable for a wide range of pneumatic systems, including cleanrooms and semiconductor manufacturing.
Product Details
GWWY4-8
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
GWWY4-8
Applicable tube O.D.∅
4mm
M
R1/4
H
14mm
L
50.5mm
A
11.0mm
B
16.0mm
C
10.0mm
D
21mm
E
3.2mm
F
22mm
N
15.5mm
P
11.0mm
Effective sectional area
9.7mm^2

Specifications may be subject to change without notice
