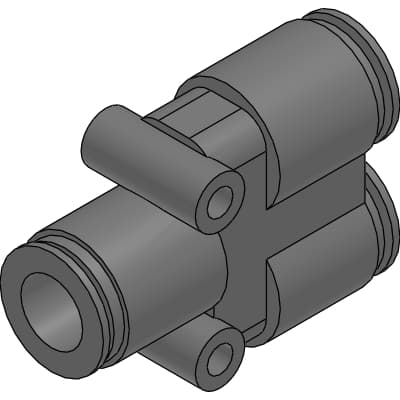

Product Model
GWY1010-0
Selling Points
- 1Significantly reduces piping space, perfect for compact installations.
- 2Easy and fast connection system for pneumatic piping.
- 3Flexible tubing suitable for various applications in pneumatic systems.
- 4Made from high-quality materials for long-lasting performance.
- 5Compatible with tubes of different diameters (ø4 to ø12) and port sizes (M3 to R1/2).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWY1010-0 | Applicable tube O.D.∅ A side | 10mm |
Applicable tube O.D.∅ B side | 10mm | L | 48.0mm |
B1 | 21.5mm | B2 | 21.5mm |
C | 17.5mm | D | 36mm |
E | 4.2mm | F | 18.5mm |
J | 30.0mm | N1 | 22.0mm |
N2 | 18.0mm | P | 18.5mm |
Effective sectional area | 38.0mm^2 |
