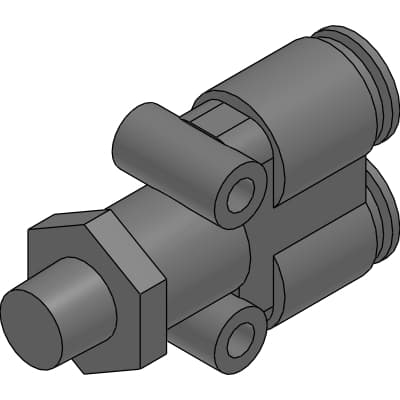

Product Model
GWY12-15
Selling Points
- 1Compact design for space-saving applications.
- 2Flame retardant PBT resin for enhanced safety.
- 3Easy push-in fitting for quick connections.
- 4Available in various configurations, including branch Y and metric tube.
- 5Suitable for pneumatic piping systems requiring high reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWY12-15 | Applicable tube O.D.∅ | 12mm |
M | R1/2mm | H | 22mm |
L | 69.0mm | A | 15.0mm |
B | 23.0mm | D | 41mm |
E | 4.2mm | F | 21.0mm |
J | 32.0mm | P | 21.0mm |
Effective sectional area | 40.5mm^2 |
Specifications may be subject to change without notice
