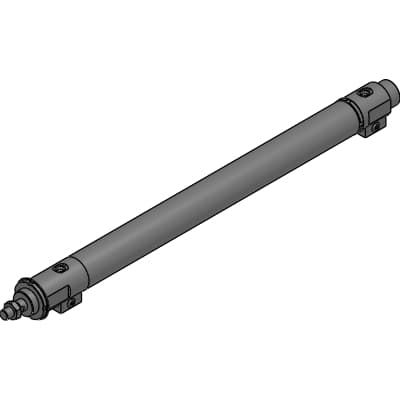

Product Model
HCA-00-32B-400
Selling Points
- 1High-speed operation with double-acting single rod method.
- 2Robust design for high-frequency applications.
- 3Compact and lightweight construction.
- 4Integrated guides on both sides for precise movement.
- 5Easy installation, adjustment, and maintenance with integrated piping and wiring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | HCA | Mounting | 00: Basic |
Bore size | 32mm | Port thread | Blank: Rc thread |
Cushion | B: With two-sided cushion | Standard stroke - custom stroke | 400mm |
Accessory | Blank: None | Rod position | 0mm |
Product information | Product information | A | 22mm |
B | 17mm | C | 20mm |
D | 37.0mm | E | 67mm |
EE | Rc 1/4 | F | 42.0mm |
G | 57mm | J | 37.0mm |
KK | M10 x 1.25 | L | 6mm |
LL | 197mm | LL + stroke | 597mm |
MB | M25 x 1.5 | MM | 12mm |
MN | 5mm | MO | 10mm |
O | 42mm | Q | 25.0mm |
R | 52mm | S | 23.5mm |
T | 18.5mm | U | 32mm |
V | 20mm | WF | 30mm |
X | 269mm | X + stroke | 669mm |
XE | 217mm | XE + stroke | 617mm |
Y | 42.0mm | YA | 25.0mm |
Z | 17.0mm | LA | 277mm |
LA + stroke | 677mm | LB | 8mm |
LC | 20mm | LD | 10mm |
LE | 237mm | LE + stroke | 637mm |
LF | 30mm | LG | 3.2mm |
LH | 40mm | LK | 6.6mm |
LM | 19.0mm | LS | 54mm |
FA | 4.5mm | FB | 25.5mm |
FC | 221.5mm | FC + stroke | 621.5mm |
FD | 66mm | FE | 52mm |
FG | 38mm | FH | 24mm |
FI | 231.5mm | FJ | 6.6mm |
Specifications may be subject to change without notice
