Product Model

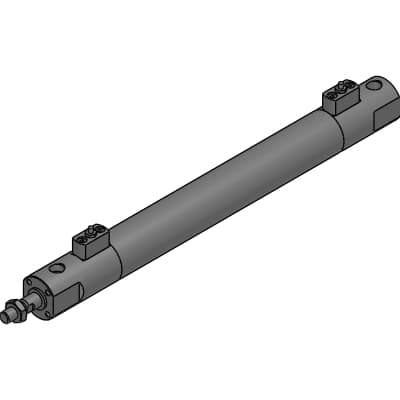

HCM-00-63B-200
Selling Points
- 1High-Speed Performance: Achieve speeds of up to 2000 mm/s for efficient mold ejection.
- 2Advanced Energy Absorption: Five times higher impact absorption than conventional cylinders, ensuring smooth operation.
- 3Customizable Options: Available in various bore sizes (φ20 to φ63) and stroke lengths (200 to 1000 mm).
- 4Integrated Cushion Mechanism: Realizes smooth stop at the stroke end with the new cushion mechanism.
- 5Versatile Industry Use: Suitable for jig-related industries and applications requiring heavy load handling.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | HCM | Bore size | 63mm |
Mounting | 00: Basic | Port thread | Blank: Rc thread |
Cushion | B: With two-sided cushion | Standard stroke - custom stroke input | 200mm |
Optional piston rod material | None | Accessory | None |
Piston rod position | 0 | Product information | Product information |
A | 32mm | B | 27mm |
C | 30mm | D | 69.4mm |
DA | M10 depth 15 | E | 69.4mm |
EA | 66.5mm | EB | 54.5mm |
EC | 59.3mm | EE | Rc 3/8 |
F | 29 | FA | -mm |
FD | -mm | FJ | -mm |
FF | -mm | FG | -mm |
FL | -mm | FM | -mm |
FT | -mm | G | 14mm |
J | 32mm | KK | M18X1.5 |
LA | -mm | LB | -mm |
LC | -mm | LD | -mm |
LE | -mm | LF | -mm |
LH | -mm | LL | 196 |
LR | -mm | LS | -mm |
LT | -mm | LX | -mm |
MC | 60mm | M | -mm |
MM | 20mm | MN | 17mm |
MO | 8mm | N | 2 |
QA | 30mm | QB | 17mm |
SD | 38mm | T | 11mm |
W | -mm | WF | 25.5mm |
X | 255.5mm | XF | 57.5mm |
Y | 30mm | GR | 81.5mm |
GH | 69.5mm | GA | 18mm |
GB | 26.5mm | P | 41.2mm |
Specifications may be subject to change without notice
