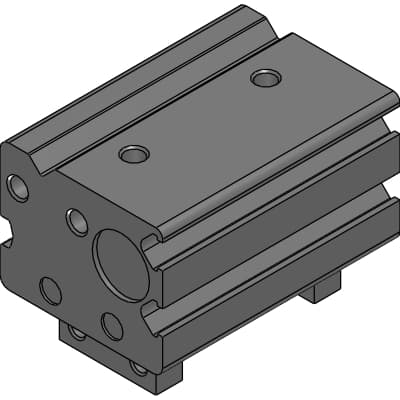

Product Model
HLA-12CS
Selling Points
- 1Double acting operation for enhanced precision and control.
- 2Compatible with compressed air systems for reliable performance.
- 3Compact size (ø12 mm bore) for space-efficient designs.
- 4Low operating pressure (max. 0.7 MPa, min. 0.3 MPa) for energy efficiency.
- 5Repeatability of ±0.03 mm for consistent results in applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | HLA: Bush guide | Size | 12CS |
Cylinder bore size | Ø12mm | Length (min-max) | 30mm |
Specifications may be subject to change without notice
