Product Model

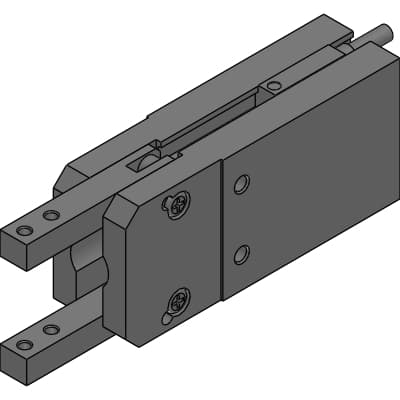

HMD-25CS-T2H-R
Selling Points
- 1Thin and Space-Saving Design: The HMD-25CS-T2H-R is designed to be thin and space-saving, making it perfect for applications where compactness is crucial.
- 2Wide Angle Operation: This hand allows for a wide angle of 180° opening and closing, reducing the need for vertical movement during pick & place tasks.
- 3Strong Gripping Power: Equipped with a toggle mechanism, the HMD-25CS-T2H-R offers strong gripping power, ensuring reliable handling of components.
- 4Proximity Switch Installation: Two proximity switches can be installed for easy confirmation of open and close positions.
- 5Versatile Bore Size: Available in bore sizes from Φ12 to Φ25, making it adaptable to various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | HMD | Size | 25CS |
Switch model no. | T2：Proximity, 1 color light, 2 wire | Lead wire direction | H：Axial |
Lead wire length | Blank：1 m(standard) | Switch quantity | R：1 on open side |
Angle (Min-Max) | 0° | MIN | -4mm |
MAX | 184mm |
Specifications may be subject to change without notice
