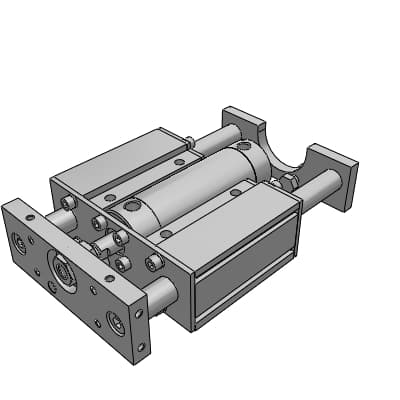

Product Model
HRL-1-25-50
Selling Points
- 1High Rigidity: The HRL-1 series boasts thin and highly rigid components, ensuring precise movement and durability.
- 2Precise Positioning: Equipped with ball bushing technology, maintaining high positioning accuracy for reliable performance.
- 3Modular Design: Easily customizable to meet various industrial needs with interchangeable components.
- 4Integrated Shock Absorber: Standard shock absorber integrated for smooth operation and reduced wear.
- 5Position Locking Mechanism: Optional position locking mechanism available for specific application requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | HRL-1 | Basic shape | Blank: Basic |
Payload (vertical) | 25: 25 kg | Stroke (mm) | 50mm |
Position locking mechanism | Blank: None | Position | 0mm |
Product information | Product information | A | 154.0mm |
AA | 16mm | AB | 14mm |
AC | 8.0mm | AD | 45mm |
AE | M8 | AF | 79.0mm |
AG | 100mm | +0.03/0 | 10mm |
AI | 5mm | AJ | 5mm |
AK | 20.0mm | AL | 15.0mm |
AM | 40mm | AN | 68.0mm |
B | 202mm | C | 37.0mm |
D | 80mm | E | 90mm |
F | 11mm | G | 150mm |
H | 30mm | I | 55mm |
J | 80mm | K | 100mm |
L | 200mm | M | 45mm |
N | 75mm | O | M8 |
P | Rc 1/8 | Q | -mm |
R | -mm | S | 47mm |
SQ | 51.0mm | T | 20mm |
U | 190mm | V | 75mm |
W | - | X | 52mm |
Y | 86.0mm | Z | 252mm |
A1 | -mm | B1 | -mm |
C1 | -mm | D1 | -mm |
E1 | -mm | F1 | -mm |
G1 | -mm | H1 | -mm |
I1 | -mm | J1 | -mm |
Specifications may be subject to change without notice
