Product Model

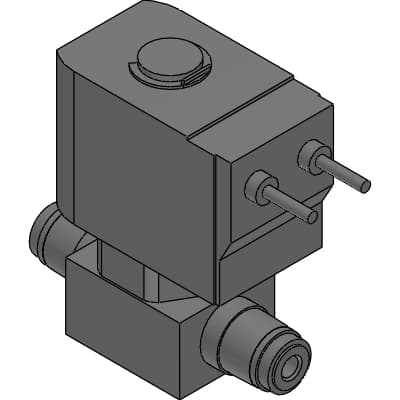

HVB412-4RM-3-2CR-AC100V
Selling Points
- 1High-purity design for vacuum applications.
- 2Precise control with orifice sizes ø1, ø2, ø3, ø4.5, and ø6.
- 3Durable construction with FKM sealant material.
- 4Compatible with various port sizes including NPT1/8 and 1/4” JXR fittings.
- 5Suitable for operating pressures up to 0.5 MPa (≈73 psi).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model number | HVB412 | Size variation | 4 : 34 mmmm |
Connection | 4RM : 1/4" JXR male fitting | Orifice size | 3 : φ 3 |
OPTCO | 2CR : Grommet lead wire with all wave rectifier | Other options | Blank : None |
Voltage | AC 100V : 100 VAC 50/60 Hz, 110 VAC 60 HzHz | A | 34mm |
B | 34mm | C | -mm |
D | -mm | E | -mm |
F | -mm | G | -mm |
H | -mm | J | -mm |
K | -mm | L | -mm |
Specifications may be subject to change without notice
