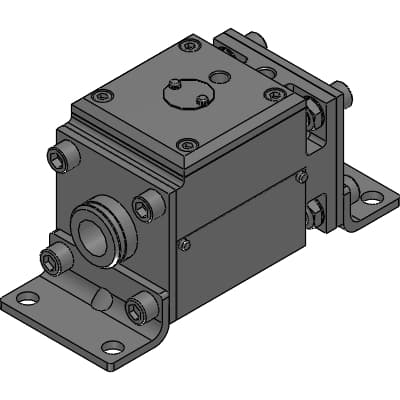

Product Model
JSB3-LB-25
Selling Points
- No selling points available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | JSB3 | Mounting | LB: Axial foot |
Rod diameter | 25: ø25mm | Rod length | Blank: Not includedmm |
Product information | Product information | A | 186.5mm |
B | 17.5mm | BF | -mm |
C | 151.5 | CF | -mm |
D | 13mm | DF | -mm |
E | 119mm | EF | -mm |
F | 66mm | FF | -mm |
G | 27mm | H | M14 |
I | Rc1/4 | J | 43.0mm |
K | 25mm | LL | 74mm |
LF | -mm | ML | 98mm |
NL | 60mm | N | -mm |
O | 66.0mm | PL | 126mm |
P | -mm | Q | 5mm |
RL | 14mm | RF | -mm |
SL | 225.5mm | SF | -mm |
TL | 253.5mm | TF | -mm |
UL | 14mm | UF | -mm |
VL | 6mm | M | 98mm |
MA | 107mm |
Specifications may be subject to change without notice
