CKD CorporationCylinders with brake/lock
Product Model

JSG-T2JH

Manufacturer

CKD Corporation

Category

Cylinders with brake/lock

Product ID

50114

In Stock
Last updated: 2025/4/18
View Specifications

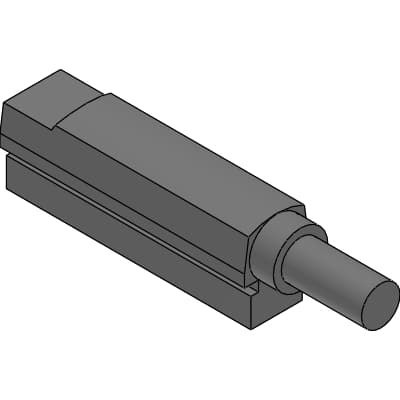

CKD Corporation JSG-T2JH

Selling Points

  • 1Reliable Brake Mechanism: The JSG-Tie Rod Cylinder with Brake adopts the same mechanism as the well-established JSC3 Series, ensuring reliable durability.
  • 2Strong Holding Force: With its proprietary locking mechanism, the rod holding force realizes a strong holding force equivalent to twice the thrust when working pressure is 0.4 MPa.
  • 3Compact and Versatile: Available in various bore sizes (φ40, φ50, φ63, φ80, φ100) and stroke lengths (20 to 500 mm), making it suitable for diverse applications.
  • 4Safety-Certified: Designed for safety applications, ensuring stable operation and preventing rod rotation for enhanced safety.
  • 5Easy Maintenance: Includes user manuals, safety precautions, and maintenance parts documentation for easy upkeep and troubleshooting.
Product Details
JSG-T2JH
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Type
JSG
Switch model number
T2J
Lead wire direction
H: Axial

Specifications may be subject to change without notice
