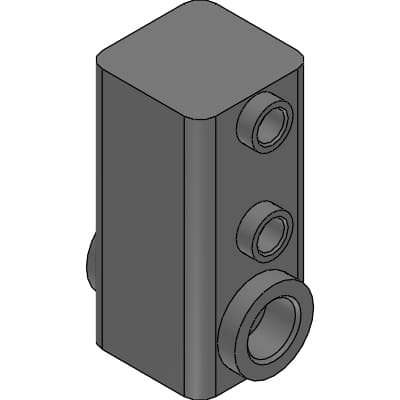

Product Model
LAD1-10A-P
Selling Points
- 1Precision Fluid Control: The LAD1-10A-P valve offers adjustable flow rate for precise control in various applications.
- 2Durable Construction: Equipped with a PTFE diaphragm and stainless steel stiffening ring for enhanced durability and resistance to corrosion.
- 3Versatile Port Options: Available in Rc3/8 port size, suitable for a wide range of fluid handling needs.
- 4Compact Design: Compact dimensions (47 x 23 x 77 mm) make it ideal for space-constrained installations.
- 5Easy Installation: Includes mounting plate options for straightforward installation and secure mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | LAD | Actuation | 1: NC (Normally closed) |
Port size | 10A: Rc3/8 | Material combination | P: Body PPS, Diaphragm EPDM |
Other options | Blank: No options | Other options | Blank: No options |
A | 47mm | B | 23mm |
C | 77.0mm | D | 14.5mm |
E | 25.5mm | F | 55.5mm |
G | Rc3/8mm | H | 20mm |
J | 36.0mm | K | M5 Depth 7mm |
L | 9.5mm | M | 24.0mm |
N | 86.5mm | P | 50mm |
Q | 62mm | R | 22mm |
S | 36.0mm | T | 7mm |
Without mounting plate | 102.0mm | Mounting plate | 111.5mm |
Specifications may be subject to change without notice
