Product Model

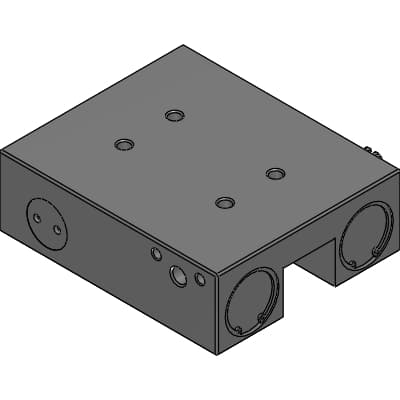

LML-SR15W
Selling Points
- 1Precision Linear Guide: Designed for high accuracy and smooth motion.
- 2Durability: Constructed with iron-based materials for long-lasting performance.
- 3Long-term Maintenance-Free Operation: Ensures continuous operation without the need for frequent maintenance.
- 4Versatile Mounting Options: Supports various mounting methods including top surface mount and rail mounting.
- 5Seal Resistance Value (N): Provides reliable seal resistance for optimal performance in challenging environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | LML: (Compatible guide: THK) | Operating rail type | SR: SR |
Operating rail type and unit | Blank: No option | Operating rail width | 15 |
Operating unit | W: W | Port | Blank: Lock release port M5 |
Manual release | Blank: None | Product information | Product information |
A | 65mm | B | 30mm |
C | 55mm | D | 15mm |
E | 21.0mm | F | 13.0mm |
G | 11.5mm | H | 6.0mm |
I | M4 depth 5 | J | M5 |
K | 8mm | L | 16mm |
M | 2.0mm | N | 19mm |
O | 0.5mm | Q | 11.5mm |
R | Rc1/8 | U | 4mm |
V | 5mm | S | 91mm |
T | 6.0mm | Y | 8.5mm |
Z | 4.5mm | AA | 12.0mm |
AB | 6mm |
Specifications may be subject to change without notice
