Product Model

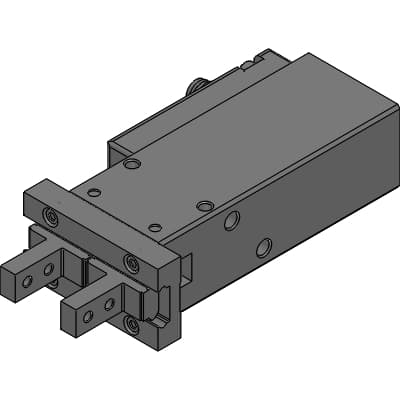

LSHM-A25D1A-N-HP2
Selling Points
- 1High Precision Measurement: The LSHM-A25D1A-N-HP2 offers a repeatability of ±0.02 mm, ensuring accurate measurements in various industrial applications.
- 2Integrated LVDT Sensor: Equipped with an LVDT sensor, this linear slide hand is highly resistant to vibration and impact, providing reliable data even in harsh environments.
- 3Predictive Maintenance: The device monitors output changes to predict equipment maintenance, preventing damage to gripping jaws and jigs through abnormal wear detection.
- 4Environmental Resistance: Featuring an IP65 equivalent amplifier and rubber cover, it protects against cutting chips and water drops, ensuring durability in demanding conditions.
- 5Selectable Output Formats: Offers different output formats including switch output adapter, IO-Link adapter, and analog output with linearity options for versatile application compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | LSHM | Type | A : Standard (without cover) |
Bore size | 25 : Ø25mm | Operation type | D : Double acting |
Finger op | 1 : Standard | Position for hole | A : Amp side / no hole |
Compensation adapter | N : None | Position of jaw | 19.3mm |
Specifications may be subject to change without notice
