CKD CorporationHand with length measuring sensor
Product Model

LSHM-G25D1A-N-HP2

Manufacturer

CKD Corporation

Category

Hand with length measuring sensor

Product ID

50694

In Stock
Last updated: 2025/4/17
View Specifications

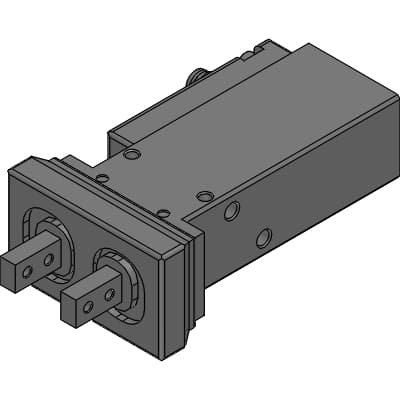

CKD Corporation LSHM-G25D1A-N-HP2

Selling Points

  • 1High Precision Measurement: The LSHM-G25D1A-N-HP2 features an LVDT sensor for precise length measurements with a repeatability of ±0.02 mm.
  • 2Predictive Maintenance: Monitors abnormal wear and deformation of gripping jaws and jigs to prevent equipment damage.
  • 3Environmental Resistance: IP65 equivalent amplifier and rubber cover protect against cutting chips and water drops.
  • 4Selectable Output Formats: Offers various output formats including switch output, IO-Link, and digital output for different applications.
  • 5High Durability Components: Designed with high durability components for long service life and reliable performance in industrial environments.
Product Details
LSHM-G25D1A-N-HP2
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
LSHM
Type
G : Chloroprene rubber
Bore size
25 : Ø25mm
Operation type
D : Double acting
Finger op
1 : Standard
Position for hole
A : Amp side / no hole
Compensation adapter
N : None
Position of jaw
19.3mm

Specifications may be subject to change without notice
