Product Model

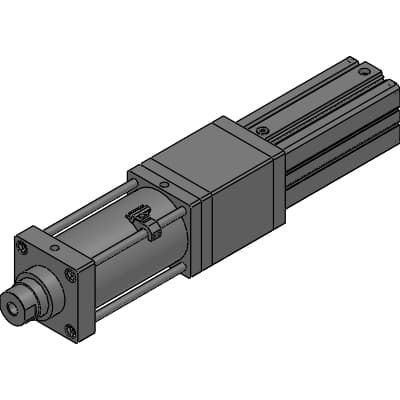

MCP-W-00-2-50-T0H-R
Selling Points
- 1High Thrust Capability: Achieve thrust equivalent to hydraulic cylinders with compressed air.
- 2Versatile Actuation: Rapid feed section double acting, booster section single acting extend type.
- 3Reliable Working Pressure: Min. working pressure 0.30 MPa, max. working pressure 0.60 MPa.
- 4Durable Construction: Withstanding pressure up to 1.0 MPa and ambient temperature range -5 to 60°C.
- 5Customizable Options: Available with rod end male thread and various switch models for precise control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | MCP-W: Rapid feed + booster | Mounting | 00: Basic |
Actual thrust | 2: For 2t | Total stroke | 50mm |
Switch model No. | T0, reed, 1-color LED, 2-wire | Lead wire direction | H: Straight |
Lead wire length | Blank: 1 m (standard) | Switch quantity | R: 1 on rod side |
Option | Blank: Rod end female thread | Piston rod position | 0mm |
Product information | Product information | A | 559.5mm |
B | 180.0mm | C | -mm |
CA | 16mm | CB | 10mm |
D | 17.0mm | E | Rc3/8 |
EA | Rc1/4 | F | 63mm |
FI | 25mm | G | 23mm |
H | 70mm | I | 55mm |
IA | 50mm | J | 90mm |
K | 118mm | L | M12 |
LA | (5.4)mm | LB | 16mm |
MN | 20mm | N | M20 depth 24 |
O | 31mm | P | 98mm |
Q | -mm | R | 104mm |
Y | 46mm | S | 154mm |
T | 185mm | U | 18mm |
V | 87mm | W | 118mm |
GA | 3mm | X | 20mm |
FA | 69mm | FB | 72mm |
FC | 135mm | NA | M45 X 1.5 |
RD | 56mm | HD | 23mm |
Specifications may be subject to change without notice
