CKD CorporationSpace saving cylinders
Product Model

MDV-L-10-5-F0H-R

Manufacturer

CKD Corporation

Category

Space saving cylinders

Product ID

52638

In Stock
Last updated: 2025/4/24
View Specifications

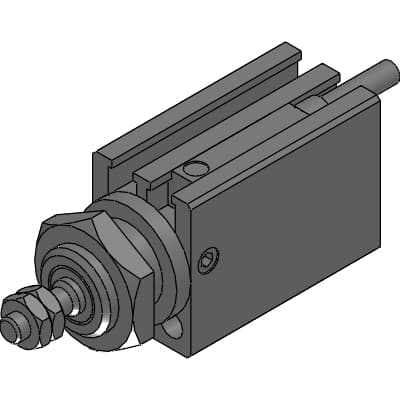

CKD Corporation MDV-L-10-5-F0H-R

Selling Points

  • 1Compact and space-saving structure for easy installation.
  • 2Available in various bore sizes (6, 8, 12, 16 mm) to suit diverse applications.
  • 3Equipped with proximity and reed switches for precise control and monitoring.
  • 4Durable construction with stainless steel mounting bolts for magnetic substance-free environments.
  • 5Suitable for a wide range of industrial uses, including ejection of workpieces and shutters in parts feeders.
Product Details
MDV-L-10-5-F0H-R
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model No.
MDV-L
Bore size
10mm
Stroke
5mm
Switch model No.
F0, reed, 1-color display, 2-wire
Lead wire direction
H: Straight
Lead wire length
Blank: 1 m (standard)
Switch quantity
R: 1 on rod side
Stroke position
0mm
RD
4.5mm
HD
3mm

Specifications may be subject to change without notice
