Product Model

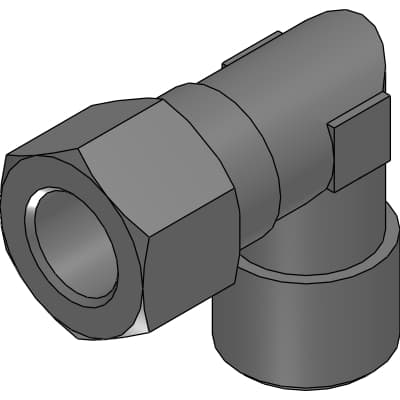

MJL12-8-M
Selling Points
- 1High mechanical strength for durable performance.
- 2Flame retardant material for safety in high-temperature applications.
- 3Flexible coiling tube suitable for tight spaces and short piping.
- 4Compatible with various tube sizes (ø12, ø8) and port sizes (R 1/8, R 1/4).
- 5Easy installation with standard sealant and retainer collar.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | MJL12-8-M | Compatible tube O.D. | 12 |
Port size | Rc1/4 | H | 19mm |
L1 | 25.0mm | L2 | 29.0mm |
A | 11mm | B | 16.0mm |
Min. bore | 10.0 | Eff. X-sectional area | 29.3mm^2 |
Weight | 49g |
Specifications may be subject to change without notice
