CKD CorporationFittings/tubes
Product Model

MJS10-10-E

Manufacturer

CKD Corporation

Category

Fittings/tubes

Product ID

52155

In Stock
Last updated: 2025/4/21
View Specifications

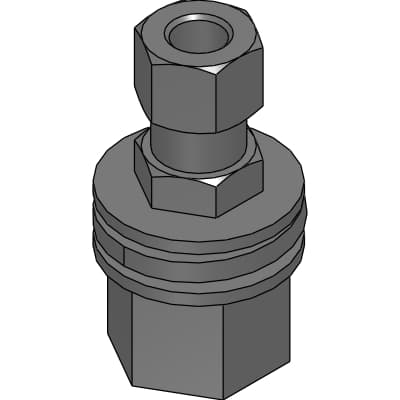

CKD Corporation MJS10-10-E

Selling Points

  • 1Durable construction with copper alloy body and nut.
  • 2Precise dimensions for optimal fit and performance.
  • 3Compatible with soft nylon tubes (F-15) and urethane tubes (U-95).
  • 4Operating temperature range: -10°C to 60°C (no freezing).
  • 5Max. working pressure: 1.0 MPa (≈150 psi, 10 bar).
Product Details
MJS10-10-E
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
MJS10-10-E
Compatible tube O.D.
10
Port size
Rc3/8
H1
20mm
H2
17mm
L
45.5mm
A
12mm
B
14.5mm
C
14.0mm
Mounting hole
15
Min. bore
8.0
Eff. X-sectional area
40.1mm^2
D
28mm
Weight
70g

Specifications may be subject to change without notice
