Product Model

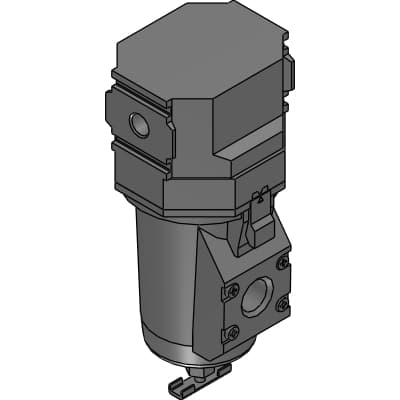

MM3000-8-W
Selling Points
- 1Advanced Filtration: 0.01 μm nominal filtration rating for high-efficiency air purification.
- 2Compact Design: Modular structure with integrated pressure gauge for space-saving and easy maintenance.
- 3Durable Construction: Hybrid materials (aluminum body, resin cover) for strength and reduced weight.
- 4Wide Pressure Range: Operating pressure from 0.1 to 1.6 MPa, proof pressure up to 2.4 MPa.
- 5Long Service Life: Elements with original chemical fiber structure reduce clogging and extend service life to 1 year or 6000 hours.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | MM3000 | Port size | 8 : 1/4 |
Port thread | Blank : Rc thread | Drain discharge | Blank : With manual drain cock |
Bowl material | Blank : Metal bowl | Element | Blank : M type (nominal 0.01 μm; remaining oil 0.01 mg/m^3) |
Diff press detect | Blank : Without differential pressure detection port | Flow direction | Blank : Standard flow (left-->right) |
Display unit | Blank : MPa display, Rc thread | Other attachments | Blank : Not attached |
Adaptor thread | None | Bracket (attachment) | Blank : Not attached |
Infotext | ckd_cn/refining_and_pressure_adjusting_components/filter/mm3000_mm8000_w/mm_3000_to_8000_w.pdf |
Specifications may be subject to change without notice
