Product Model

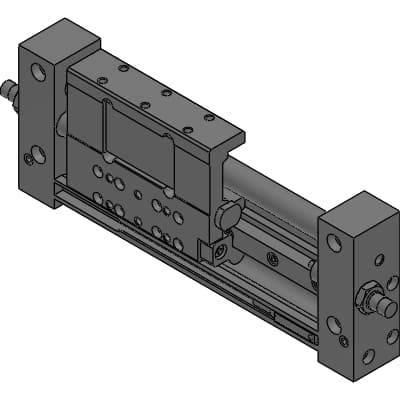

MRG2-16-50-T0H-R
Selling Points
- 1High precision guide for reliable operation.
- 2Double acting design for versatile applications.
- 3Compatible with programmable controllers and relay IC circuits.
- 4Easy integration with proximity switches (T0H).
- 5Robust construction with stainless steel tube for high corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | MRG2 | Bore size | 16 |
Stroke | 50 | Switch model No. | T0: Reed, 1-color LED, 2-wire |
Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
Switch quantity | R: 1 on R side | Option | Blank: None |
Stroke position | 0mm | LA | 166mm |
B | 32mm | G | 34mm |
F | 80mm | H | 88mm |
O | 11mm | LB | 144mm |
LD | 48mm | LJ | 24mm |
LE | 4.5mm | LF | 8 spot face depth 4.4mm |
LG | M5 depth 8mm | LH | M5 depth 8mm |
A | 23mm | C | 4.5mm |
PA | 22mm | PB | 32mm |
RA | 14mm | RB | 16mm |
Q | M4 depth 6mm | TA | 21.5mm |
TB | 16mm | TC | 30mm |
TD | 24mm | UA | M4 depth 6mm |
D | T0H | LX | 18mm |
EE | M5 depth 4mm | LY | 19.0mm |
EF | M5 depth 4mm | LZ | 15.0mm |
E | 46.5mm | I | 24mm |
J | 72mm | K | 16.5mm |
L | 20mm | M | 9mm |
N | 108mm | LC | 9mm |
V | MRG2-16-Cmm | RD | 0.0mm |
LD2 | 0.0mm | X | - |
Y | - | Y2 | -mm |
J2 | -mm | Product information | Product information |
Specifications may be subject to change without notice
