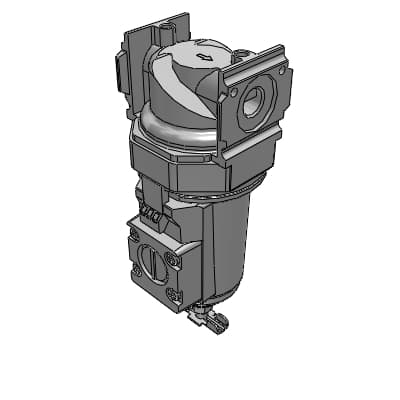

Product Model
MW3000-10-W
Selling Points
- 1Compact modularization for space efficiency.
- 2Unique chemical fiber structure for extended element lifespan.
- 3Recessed pressure gauge design for improved safety and reduced weight.
- 4Filter rating of 5μm for effective dust removal.
- 5General dry air compatibility with a max operation pressure of 1 Mpa.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | MW3000 | Port size | 10 : 3/8 |
Port thread type | Blank : Rc thread | Drain discharge | Blank : With a manual pet cock |
Mantle (element) | Blank : M-type (nominal 0.01 μm; remaining oil 0.01 mg/m3) | Warranty period | Blank : 1 year after delivery |
Flow direction | Blank : Standard flow (left to right) | Attachment bracket type | Blank : Not attached |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/35/MW%E2%80%BB000-W?t=list&cid=68&sid=0 |
Specifications may be subject to change without notice
