Product Model

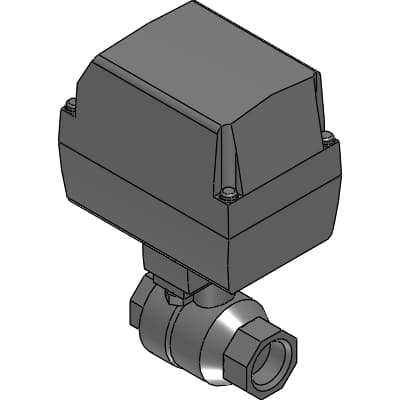

MXB1DF-15-0-1
Selling Points
- 1The MXB1DF-15-0-1 ball valve ensures minimal pressure drop, maximizing fluid flow efficiency.
- 2Unique ball opening/closing mechanism eliminates water hammer, ensuring safe operation.
- 3Available in various port sizes from 1/2 to 1 1/2 inches, accommodating diverse fluid control needs.
- 4Superior sealing properties with no burnout if the motor locks, ensuring continuous operation.
- 5Suitable for controlling general fluids to pure water, making it versatile for multiple industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | MXB1DF | Port size | 15: Rc1/2 |
Body/seat material | 0 : Body - bronze, Seat - PTFE | Option : Conductor cable | Blank : Content : 5-conductor cable 0.5 mm2 (with output lead wire) |
Option : Terminal | Blank : None | Manual override | Blank : None |
Voltage | 1: 100 VAC (50/60 Hz) |
Specifications may be subject to change without notice
