CKD CorporationBall valves
Product Model

MXG1-15-N-1

Manufacturer

CKD Corporation

Category

Ball valves

Product ID

52226

In Stock
Last updated: 2025/4/17
View Specifications

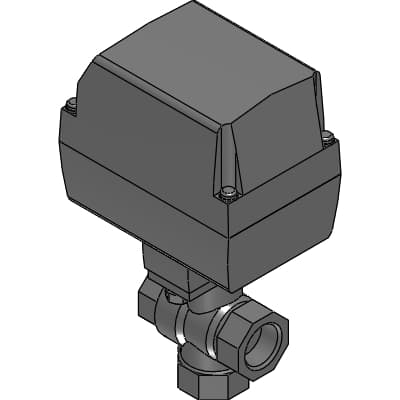

CKD Corporation MXG1-15-N-1

Selling Points

  • 1Designed with stainless steel for durability and resistance to corrosive fluids.
  • 2Features a 3-port configuration for precise fluid control and manipulation.
  • 3Built with a robust design to withstand various working pressures and temperatures.
  • 4Suitable for controlling water, hot water, air, and oil (up to 500mm²/s) in industrial settings.
  • 5Equipped with advanced technology for minimal water hammer and low pressure loss.
Product Details
MXG1-15-N-1
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
MXG1
Port size
15 : Rc1/2
Body/seat material
N: Body - stainless steel/seat - PTFE/oil-prohibited specifications
Option: Conductor cable
Blank: 5-conductor cable 0.5 mm2 (with output lead wire), -, -
Option: Terminal
Blank: None
Option: Multi fluid
Blank: None
Voltage
1 : 100 VAC (50/60 Hz)

Specifications may be subject to change without notice
