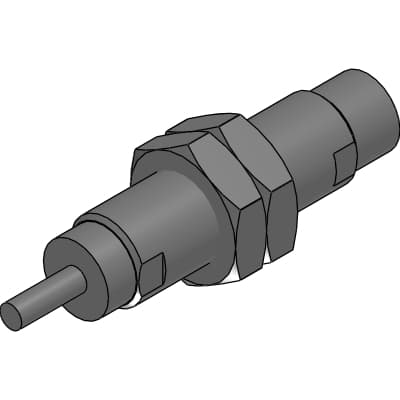

Product Model
NCK-00-0.1
Selling Points
- 1High energy absorption up to 1 J.
- 2Robust design for reliable performance.
- 3Ideal for medium to slow speed operations.
- 4Compact and slim design with high absorbing force.
- 5Smooth impact absorption with slit orifice method.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | NCK | Mounting | 00: Basic |
Series (max. energy absorption) | 0.1: 1J | Option | Blank: Standard |
Product information | Product information | A | 34.5mm |
AA | 40.5mm | B | 4.0mm |
C | 29.5mm | E | 6.0mm |
F | 4.0mm | G | 7.5mm |
H | 7mm | I | 6mm |
J | M8x0.75 | K | 2.8mm |
L | 12mm | LL | 13.9mm |
M | 6mm | MM | 12.0mm |
N | 23.0mm | P | 42mm |
Q | 30mm | R | 20mm |
S | 5.5mm | T | 2.3mm |
U | 15.0mm | V | 8mm |
W | 14mm | X | 9mm |
Y | 12mm |
Specifications may be subject to change without notice
