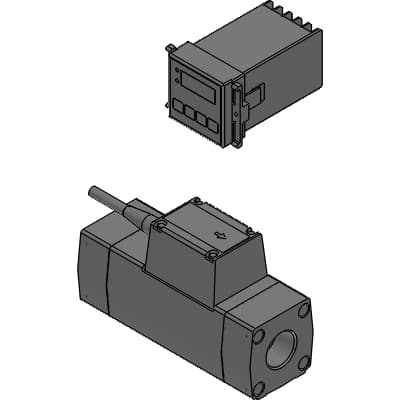

Product Model
PFD-802-40N0
Selling Points
- 1Accurate Flow Measurement: Measures flow rates from 25 to 8000 L/min with high precision.
- 2Robust Design: Built with a platinum membrane resistor for reliable performance in harsh environments.
- 3Easy Integration: Compatible with various output methods including NPN/PNP open collector and analog voltage output.
- 4Digital Display: Provides clear digital readouts for easy monitoring of flow rates.
- 5Reliable Performance: Designed for clean compressed air and nitrogen gas, withstanding pressures up to 1.5 MPa.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | PFD | Flow rate range | 802 : 400 to 8000 L/min(normal) |
Port size | 40 : Rc1 1/2 | Switch output | N : NPN transistor output x 2 |
Analog output | 0 : 0 to 5 VDC, Standard | Bracket | Blank : None, Standard |
A | 190mm | B | 65mm |
C | 103.7mm | D | 34.0mm |
E | 69.7mm | F | 75.0mm |
G | 40mm | H | 26mm |
I | 94mm | J | 80mm |
K | 8.0mm | L | 6.0mm |
Thread | M5 thread depth 8 |
Specifications may be subject to change without notice
