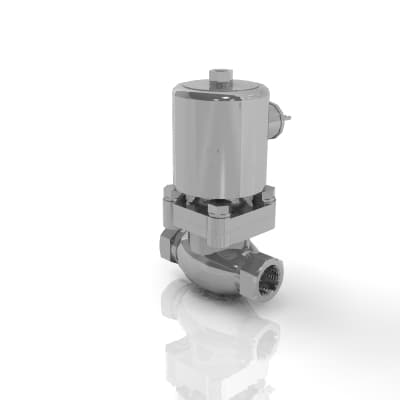

Product Model
PKW-04-27-AC100V
Selling Points
- 1Reliable Operation at Low and High Pressures
- 2Operates from Zero Differential Pressure
- 3Stainless Steel Body Option Available
- 4Suitable for High Humidity Environments (95% or Less)
- 5Wide Range of Port Sizes (Rc1/2 to 50 Flange)
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | PKW | Port size | 04 : Rc1/2 |
Body material | Blank : Bronze | Coil option | Blank : Open frame lead wire coil |
Voltage | AC100V : 100 VAC 50/60 Hz | A | 90mm |
B | 126mm | C | 29mm |
D | 88mm | E | 23mm |
F | -mm | G | 60mm |
H | 49mm |
Specifications may be subject to change without notice
