Product Model

PVP-S-200-250

In Stock
Last updated: 2025/4/17

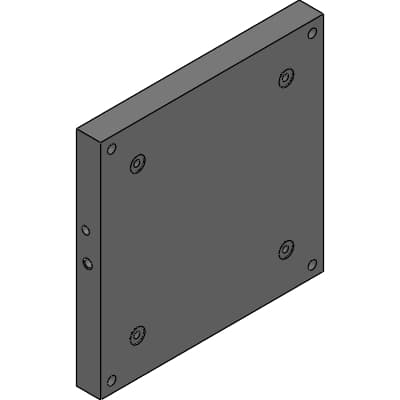

CKD Corporation PVP-S-200-250

Selling Points

  • 1High precision suction plate with porous fluorine resin for ultra-thin material handling.
  • 2Reduces deformation of workpieces by precise flatness processing of the suction surface.
  • 3Available in various shapes (Round, Donut, Square) to suit different applications.
  • 4Black type without scratches or glare, customizable upon request.
  • 5Compatible with a wide range of industries, including semiconductor manufacturing and post-process applications.
Product Details
PVP-S-200-250
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model No.
PVP
Shape
Square shape
Porous material-short side - Porous material-long side
200-250mm
Vacuum port position
Blank: Side surface port
Option
Blank: None
A
200mm
B
250mm
C
212mm
D
262mm
E
226mm
F
276mm
G
180mm
H
230mm

Specifications may be subject to change without notice
